Z40 Dash Cam

Z40 Dash Cam: Car Camera Recorder with Sony IMX335 Sensor
1944P Ultra HD Video Recording, GPS Tracking, 360° Rotation, Wi-Fi, DVR, and 24-Hour Parking Mode

Key Features

1. Sony IMX335 Sensor for 1944P Ultra HD

   • Captures video at up to 2592×1944 resolution for clear, detailed footage.
   • Powerful low-light performance ensures sharp clarity during both day and night.

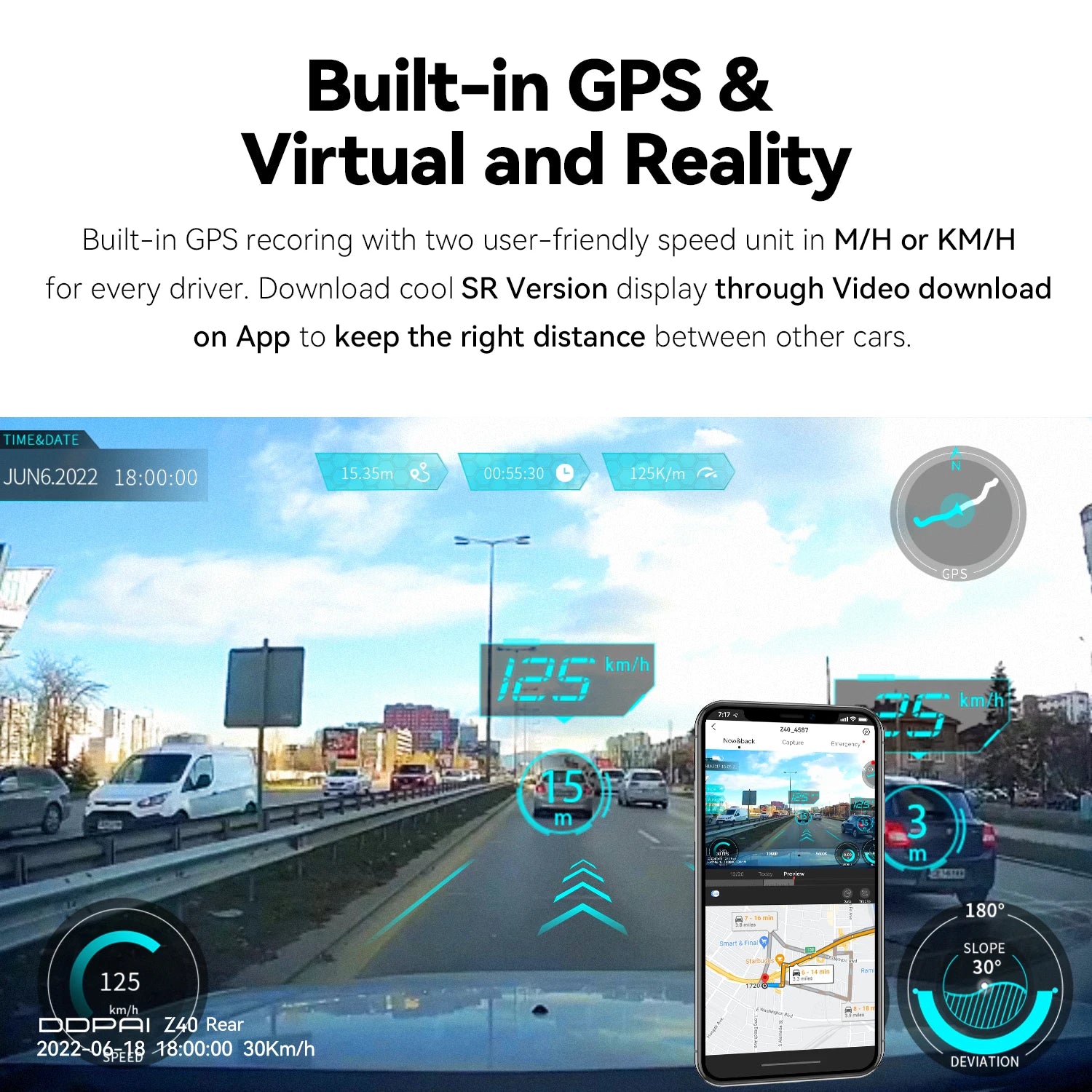

2. GPS Tracking & 360° Rotation

   • Built-in GPS provides accurate speed, location, and route data.
   • Rotatable camera body (up to 360°) allows flexible installation angles, covering essential views.

3. Wi-Fi Connectivity & Smartphone Control

   • Connect via Wi-Fi to the DDPAI app for real-time viewing, video playback, downloads, and updates.
   • Share recorded clips instantly on social media.

4. 24-Hour Parking Mode (Optional Hardwire Kit)

   • Monitors your vehicle around the clock to detect impacts or motion during parking.
   • Automatically locks and saves any potential evidence.
   • Requires a dedicated hardwire kit (sold separately) for constant power.

5. Dual Lens Compatibility

   • Optional rear camera support (not always included—check package contents).
   • Ensures comprehensive road coverage from front and rear.

6. Advanced Video Processing

   • SigmaStar chipset plus H.264 compression provides stable performance and efficient storage usage.
   • Wide-angle lens (approx. 105°–140° FOV) minimises blind spots.

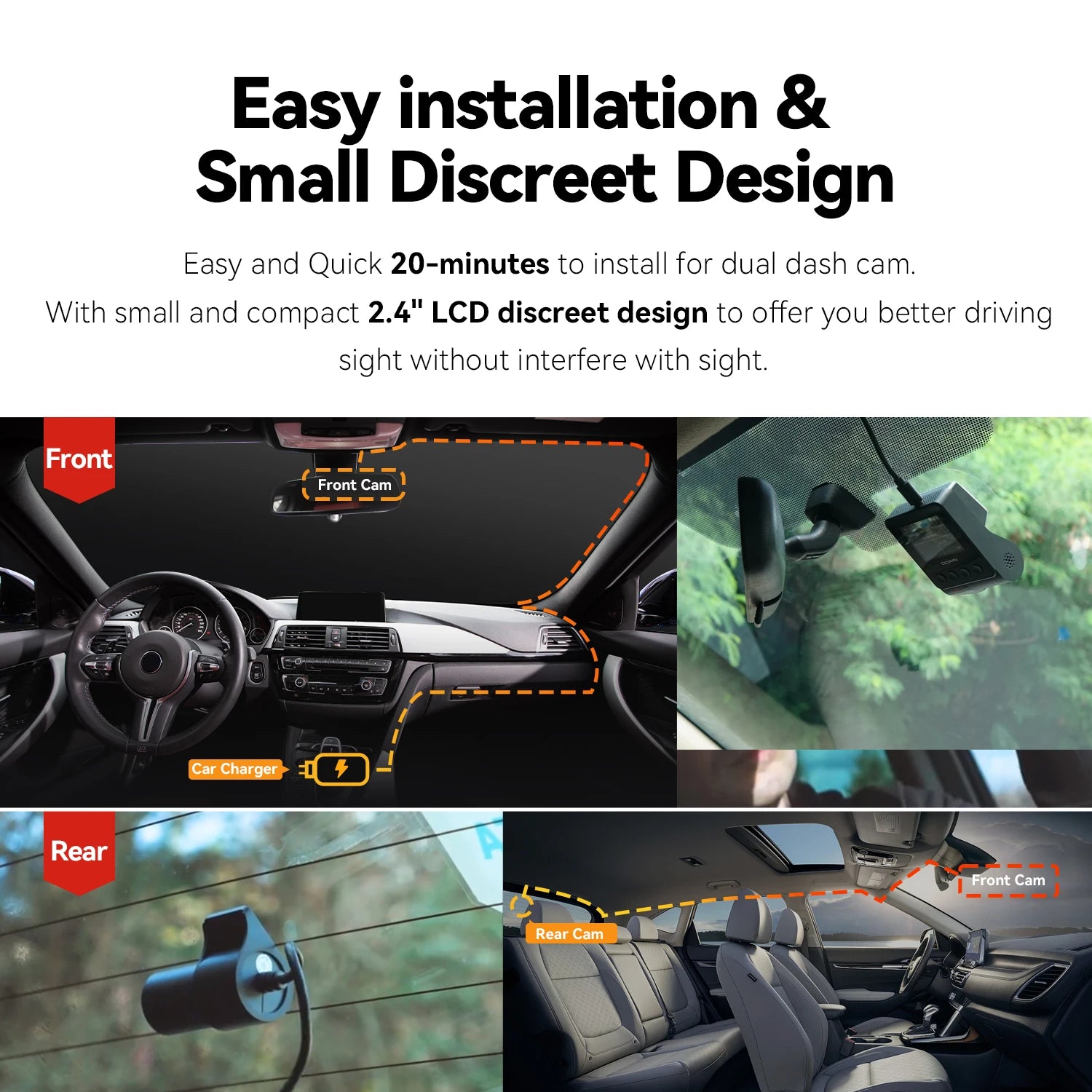

7. Discreet, Compact Design

   • Dimensions: 81 mm (W) × 61 mm (H) × 33 mm (D) for seamless, low-profile placement.
   • No built-in battery design (super capacitor or direct power source recommended).

8. Loop Recording & G-Sensor

   • Seamless overwriting when memory is full, older non-important footage replaced.
   • G-Sensor detects collisions or abrupt movements, automatically locks critical files.

9. High-Capacity Storage

   • Supports memory cards (Class 10 or above) up to 512 GB for extended recording sessions (memory card not included).

10. Warranty & Certification

• 1-year standard manufacturer warranty.
• Certified by CE, FCC, RoHS for quality assurance.

Technical Specifications

• Brand/Model: DDPAI Z40
• Sensor: Sony IMX335
• Resolution: Up to 2592×1944 (approximately 1944P), 30 fps
• Chipset: SigmaStar
• Lens Angle: 105°–140°, Aperture F1.8
• Display: No built-in screen (smartphone app control)
• Video Encoding: H.264
• External Memory: Micro SD (Class 10 or higher), supports up to 512 GB
• Power Source: Car cigarette lighter or optional hardwire kit for parking mode
• Operating Temperature: Typically -10°C to 60°C
• Dimensions: 81×61×33 mm
• Weight: Varies, approximate net weight
• Warranty: 1 year

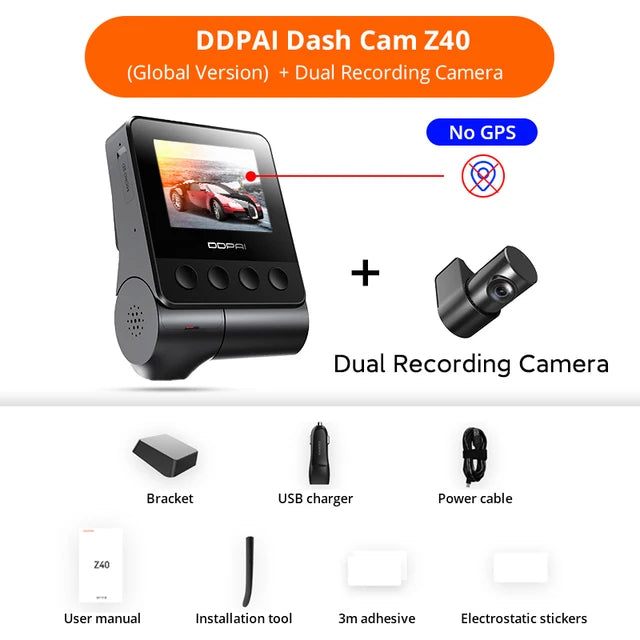

Box Contents

1. DDPAI Z40 Dash Cam (Main Unit)
2. Car Charger/Power Cable (Length: Approx. 3–4 m)
3. Adhesive Mount/Bracket
4. User Manual
5. Optional: Rear Camera (if included in selected package)
6. Optional: Hardwire Kit for 24-hour parking mode (if chosen)

(Memory card not included. Class 10 or higher micro SD card is recommended.)

Compatibility & Usage

• Vehicle Types: Suitable for most cars, trucks, SUVs with 12V DC power.
• App Integration: iOS/Android devices (DDPAI app) for live view, playback, and sharing.
• Ideal For: Daily commutes, road trips, rideshare services, or protecting your vehicle while parked.

DDPAI Z40:
A powerful dash camera solution featuring Sony IMX335 sensor, 1944P recording, GPS data logging, and 24-hour parking surveillance. Achieve peace of mind on the road with crisp footage, advanced features, and user-friendly app control.

DDPAI Z40 Dash Cam Car Camera Recorder Sony IMX335 1944P HD Video GPS Tracking 360 Rotation Wifi DVR 24H Parking Protector
